GPT Pipeline

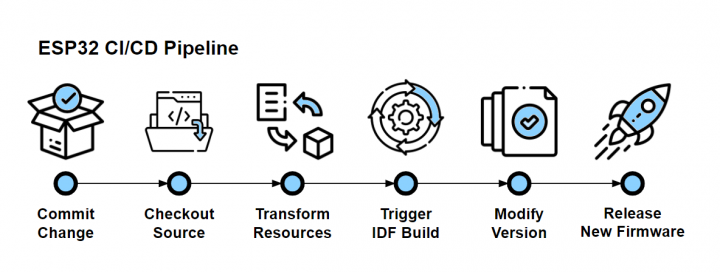

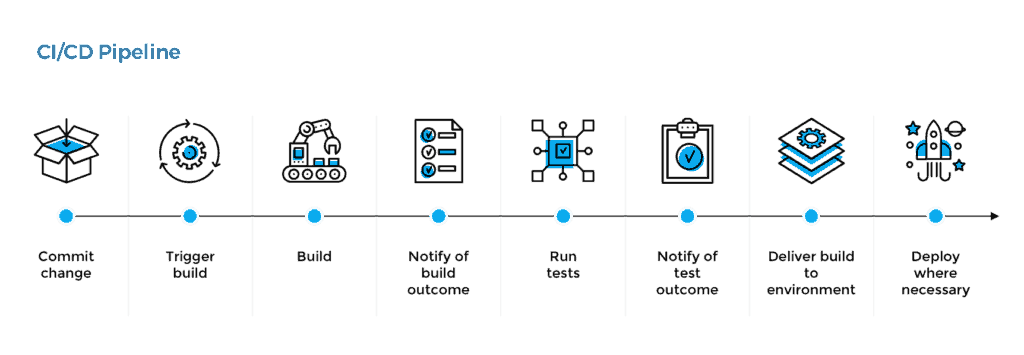

1. Architektura pipeline’u

Pipeline składa się z:

• Linting (ruff)
• Testy jednostkowe (pytest + stuby MicroPython)
• Testy HIL (hardware-in-the-loop) przez mpremote
• Budowanie paczki (opcjonalne .mpy, archiwum)
• Deployment: USB + OTA dwa sloty
• Release: tag, artefakty, rollback (opcjonalnie OTA0/OTA1)

---

2. Struktura projektu

project/
│
├── src/
│   ├── main.py
│   ├── config.py
│   ├── drivers/
│   │   ├── lis3dhtr.py
│   │   ├── oled_ssd1315.py
│   │   └── __init__.py
│   ├── services/
│   │   └── sensor_service.py
│   └── utils/
│       └── math_utils.py
│
├── tests/
│   ├── test_math_utils.py
│   ├── test_sensor_service.py
│   └── hw/
│       ├── test_i2c_scan.py
│       └── test_lis3dhtr_live.py
│
├── stubs/
│   └── micropython.pyi
│
├── scripts/
│   ├── deploy_usb.sh
│   ├── deploy_ota.py
│   ├── device_reset.sh
│   └── sync_to_board.sh
│
├── requirements.txt
├── ruff.toml
├── pytest.ini
├── Jenkinsfile
└── README.md

---

3. Konfiguracja ruff

line-length = 120
target-version = "py311"

[lint]
select = ["E", "F", "W", "I"]
ignore = ["E501"]

[mccabe]
max-complexity = 10

---

4. Testy jednostkowe – pytest

4.1 Przykład testu logiki

from src.utils.math_utils import clamp

def test_clamp():
    assert clamp(5, 0, 10) == 5
    assert clamp(-1, 0, 10) == 0
    assert clamp(20, 0, 10) == 10

---

4.2 Stub MicroPython

class Pin:
    IN = 0
    OUT = 1

    def __init__(self, pin, mode=None):
        self.pin = pin
        self.mode = mode
        self.state = 0

    def value(self, v=None):
        if v is None:
            return self.state
        self.state = v

---

5. Testy Hardware-in-the-loop (HIL)

import subprocess
import json

def test_i2c_scan_live():
    result = subprocess.check_output(
        ["mpremote", "exec", "import ujson, machine; "
         "i=machine.I2C(0, scl=machine.Pin(21), sda=machine.Pin(20)); "
         "print(i.scan())"]
    )
    addresses = json.loads(result.decode().strip())
    assert 0x6E in addresses

---

6. Deployment USB

#!/bin/bash
set -e

PORT=/dev/ttyACM0

echo "🔥 Syncing files to device..."
mpremote connect $PORT fs cp src/main.py :main.py
mpremote connect $PORT fs cp -r src/drivers :drivers

echo "🔄 Reset"
mpremote connect $PORT reset

---

7. Deployment OTA

7.1 Minimalny klient OTA

import urequests, machine, os

UPDATE_URL = "http://192.168.1.2/firmware/main.py"

def download_and_update():
    response = urequests.get(UPDATE_URL)
    with open("main_new.py", "w") as f:
        f.write(response.text)
    os.rename("main_new.py", "main.py")
    machine.reset()

---

7.2 Skrypt OTA (Jenkins → NAS)

import requests

url = "http://nas.local/micropython/build/main.py"
r = requests.put(url, data=open("src/main.py", "rb"))
print("Uploaded:", r.status_code)

---

8. Jenkinsfile – pełny pipeline

pipeline {
    agent any

    stages {

        stage('Checkout') {
            steps { checkout scm }
        }

        stage('Install') {
            steps {
                sh \"\"\"\n                pip install -r requirements.txt\n                \"\"\"\n
            }
        }

        stage('Lint') {
            steps {
                sh "ruff check src"
            }
        }

        stage('Unit tests') {
            steps {
                sh "pytest -q --disable-warnings --maxfail=1"
            }
        }

        stage('Package') {
            steps {
                sh "mkdir -p build && cp -r src build/"
            }
        }

        stage('Deploy USB') {
            when { branch 'main' }
            steps {
                sh "bash scripts/deploy_usb.sh"
            }
        }

        stage('Deploy OTA') {
            when { branch 'release' }
            steps {
                sh "python3 scripts/deploy_ota.py"
            }
        }
    }

    post {
        always { archiveArtifacts artifacts: 'build/**' }
    }
}

---
